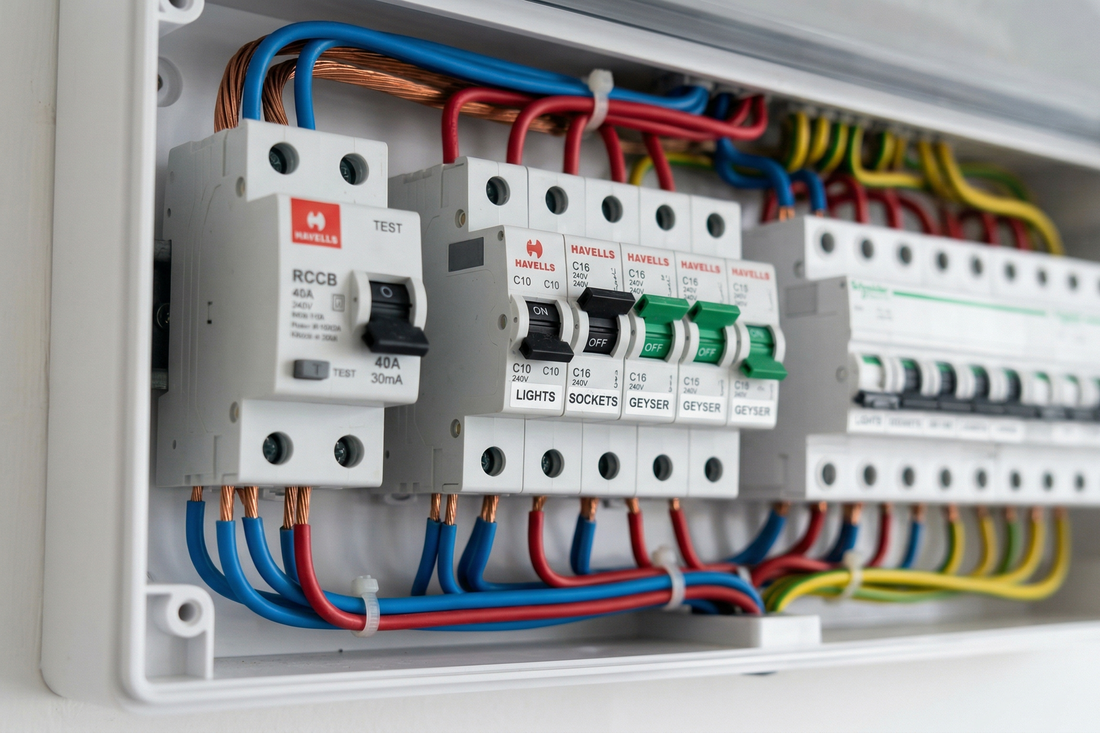

MCB vs RCCB vs RCBO: What Every Indian Homeowner Needs in Their Distribution Board

Your home's distribution board (DB) is the brain of its electrical system. The devices inside it, MCBs, RCCBs, and RCBOs, decide whether a short circuit just trips a switch or starts a fire, and whether a current leak gives you a mild tingle or a fatal shock. Yet most Indian homeowners never question what their electrician installs. This guide explains what MCB, RCCB, and RCBO actually do, why you need all of them, and how to set up a safe, modern distribution board for an Indian home.

What Is an MCB (Miniature Circuit Breaker)

An MCB protects your wiring and appliances from two things, overload (too many appliances drawing too much current on one circuit) and short circuit (a fault that causes a sudden surge of current).

When either happens, the MCB trips automatically and disconnects the circuit. You fix the fault, flip the MCB back on, and the circuit is restored. No fuses to replace.

How MCB ratings work

Every MCB has a current rating: 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, and so on. The rating should match the wire size and load on that circuit. For example, a lighting circuit on 1.5 sq mm wire uses a 6 A or 10 A MCB, while a power socket circuit on 2.5 sq mm wire uses a 16 A MCB.

What MCBs do NOT protect against

MCBs do not detect earth leakage. If a live wire touches the metal body of your washing machine and current leaks through your body to the ground, the MCB will not trip, because the current flowing through the circuit is still within normal range. That leak through your body could be as low as 30 milliamps, which is enough to kill, but far too small for an MCB to notice.

This is why you need an RCCB or RCBO in addition to MCBs.

What Is an RCCB (Residual Current Circuit Breaker)

An RCCB protects people from electric shock. It continuously monitors the current flowing through the live wire and the neutral wire. In a healthy circuit, these two currents are equal. If some current is leaking to the earth, through a person's body, through damaged insulation, or through a wet appliance, the live and neutral currents become unequal. The RCCB detects this imbalance and trips within 30 milliseconds.

RCCB sensitivity ratings

RCCBs come in different sensitivity levels:

• 30 mA: protects against electric shock to humans. This is the standard for residential use in India.
• 100 mA: protects against fire caused by earth leakage. Used for main incoming protection or for circuits where 30 mA would cause nuisance tripping (like outdoor circuits or circuits with long cable runs).
• 300 mA: protects equipment and wiring from sustained leakage. Used in industrial settings.

For home use, 30 mA sensitivity is the right choice for all circuits that people can touch, power sockets, kitchen appliances, bathrooms, and outdoor circuits.

What RCCBs do NOT protect against

RCCBs do not protect against overload or short circuit. If you plug too many heavy appliances into one circuit, the RCCB will not trip, that is the MCB's job. This is why RCCBs are always installed alongside MCBs, not as a replacement.

The nuisance tripping problem

A single RCCB protecting your entire home means that any earth leakage on any circuit trips the RCCB, killing power to the whole house. At night, this means no lights, no fans, no fridge, until you find and fix the faulty circuit. In practice, minor leakage from ageing appliances, inverters, or stabilisers can cause frequent nuisance tripping.

The solution is to either use multiple RCCBs (one for each group of circuits) or use RCBOs on critical circuits.

What Is an RCBO (Residual Current Breaker with Overcurrent Protection)

An RCBO combines the functions of an MCB and an RCCB into a single device. It protects against:

• Overload (like an MCB)
• Short circuit (like an MCB)
• Earth leakage / electric shock (like an RCCB)

This means each circuit gets its own independent earth leakage protection. If the kitchen circuit has a leakage fault, only the kitchen RCBO trips. The rest of the house stays powered.

Why RCBOs are becoming the preferred choice

In modern Indian homes with multiple ACs, geysers, modular kitchens, home automation, and EV chargers, having independent protection per circuit is a significant upgrade. RCBOs provide:

• Per-circuit fault isolation. Only the faulty circuit goes off.
• Easier fault finding. The tripped RCBO tells you exactly which circuit has the problem.
• Space savings: one RCBO replaces one MCB + a share of the RCCB.
• Better protection: every circuit has both overcurrent and leakage protection, not just a shared RCCB upstream.

The cost trade-off

RCBOs cost more per unit than a simple MCB. A typical RCBO costs ₹1,500–₹3,000 depending on brand and rating, compared to ₹150–₹400 for an MCB. However, the improved safety and convenience can justify the premium, especially for high-risk circuits like kitchen appliances, geysers, bathrooms, and outdoor circuits.

MCB vs RCCB vs RCBO: Side-by-Side Comparison

How to Set Up a Safe Distribution Board for an Indian Home

There is no single correct layout. It depends on the size of the home, the number of circuits, and the budget. Here are two practical approaches:

Approach 1: Budget-friendly (RCCB + MCB)

This is the most common setup in Indian homes today.

1. Main switch (DP MCB or isolator) at the incoming supply.
2. One or two RCCBs (30 mA, rated for the total load) downstream of the main switch, each covering a group of circuits.
3. Individual MCBs for each circuit, lighting, power sockets, AC, geyser, kitchen, etc.

Best practice: Split your circuits across two RCCBs. For example, one RCCB for all lighting + fan circuits, and another for all power + appliance circuits. This way, a leakage fault on an appliance circuit does not kill your lights.

Approach 2: Modern / premium (RCBO-based)

This is increasingly popular in new constructions and premium interiors.

1. Main switch (DP MCB or isolator) at the incoming supply.
2. Main RCCB (100 mA) as a backup upstream protection (optional but recommended).
3. Individual RCBOs for each circuit, kitchen, each AC, geyser, bathroom socket, outdoor circuit.
4. Individual MCBs for lower-risk circuits like lighting and fans (where leakage risk is lower).

This gives you the best of both worlds, full per-circuit protection where it matters most, with cost savings on lower-risk circuits.

Recommended circuit-level protection

Common Mistakes in Indian Distribution Boards

1. No RCCB at all

Many older homes and even some new constructions have only MCBs in the distribution board, with no RCCB or RCBO anywhere. This means there is zero protection against earth leakage and electric shock. If you have this setup, adding at least one 30 mA RCCB is the single most impactful electrical safety upgrade you can make.

2. One RCCB for the entire home

This works but creates the nuisance tripping problem described earlier. Splitting circuits across two RCCBs is a simple and inexpensive improvement.

3. Mismatched MCB ratings

Using a 32 A MCB on a circuit wired with 2.5 sq mm cable (rated for 20–25 A) means the MCB will not trip even when the wire is dangerously overloaded. The MCB rating must match the wire's current-carrying capacity, not the appliance.

4. No dedicated circuit for high-power appliances

Running an AC and a geyser on the same circuit with a single MCB increases overload risk and makes fault isolation harder. Each heavy appliance deserves its own circuit and its own MCB or RCBO.

5. Using cheap, unbranded MCBs

Circuit breakers are safety devices. A counterfeit MCB may not trip when it should, which defeats the entire purpose. Always buy ISI-marked (IS 8828 for MCBs, IS 12640 for RCCBs/RCBOs) from reputed brands like Schneider, Havells, Legrand, Siemens, or ABB.

FAQ

Is RCCB mandatory in Indian homes?

As of 2026, RCCB installation is recommended by the National Electrical Code of India and is increasingly being mandated by state electricity boards and RERA-registered builders. Even where not legally mandatory, installing an RCCB is a critical life-safety measure that costs under ₹2,000 and can prevent fatal electric shocks.

Can I add an RCCB to my existing distribution board?

Yes, in most cases an electrician can retrofit an RCCB into your existing DB. It is installed between the main switch and the MCBs. If your DB does not have space, a small extension box can be added. This is one of the simplest and most effective electrical upgrades for any home.

Should I choose RCCB + MCB or RCBO?

For budget-conscious setups, RCCB + MCB is perfectly effective. For new constructions, premium interiors, or homes with many high-power circuits, RCBOs on critical circuits (kitchen, geyser, bathroom, outdoor) provide better fault isolation and convenience. A hybrid approach, RCBOs for high-risk circuits, MCBs under a shared RCCB for the rest, is the most practical choice for most Indian homes.

Why does my RCCB keep tripping?

Common causes include leakage from ageing appliances (old geysers and washing machines are frequent culprits), moisture in outdoor or bathroom wiring, faulty inverter or stabiliser connections, and damaged cable insulation. Disconnect circuits one by one to isolate the source. If the tripping persists with all loads disconnected, the wiring itself may have insulation damage and needs inspection by a qualified electrician.

What brand of MCB and RCCB should I buy?

Stick to established brands with BIS certification, Schneider Electric, Havells, Legrand, Siemens, ABB, and L&T are all reliable. Avoid unbranded or suspiciously cheap devices. The price difference between a branded and unbranded MCB is ₹100–₹200, which is negligible compared to the cost of a failed safety device.

Conclusion

MCBs protect your wiring. RCCBs protect your life. RCBOs do both. Every Indian home should have at minimum an MCB on every circuit and an RCCB protecting all socket and appliance circuits. For the best protection, use RCBOs on high-risk circuits like kitchens, geysers, bathrooms, and outdoor connections.
